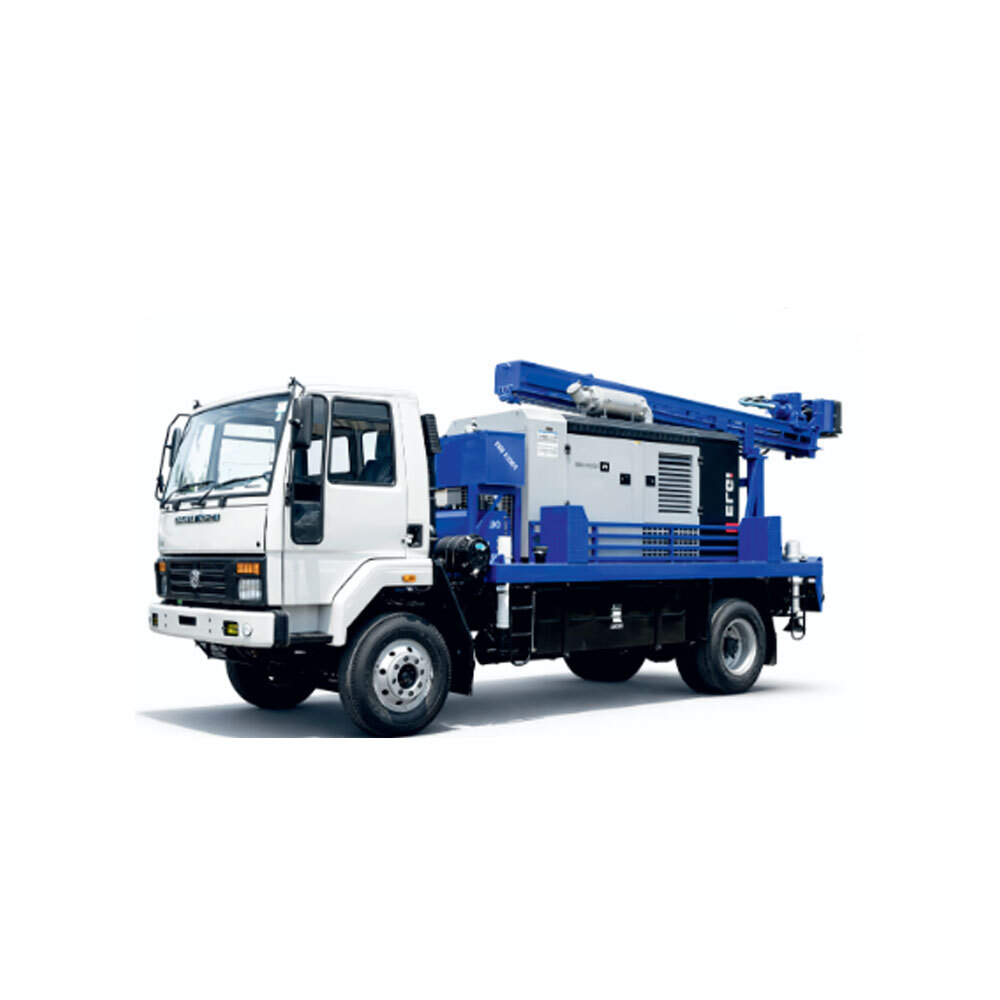

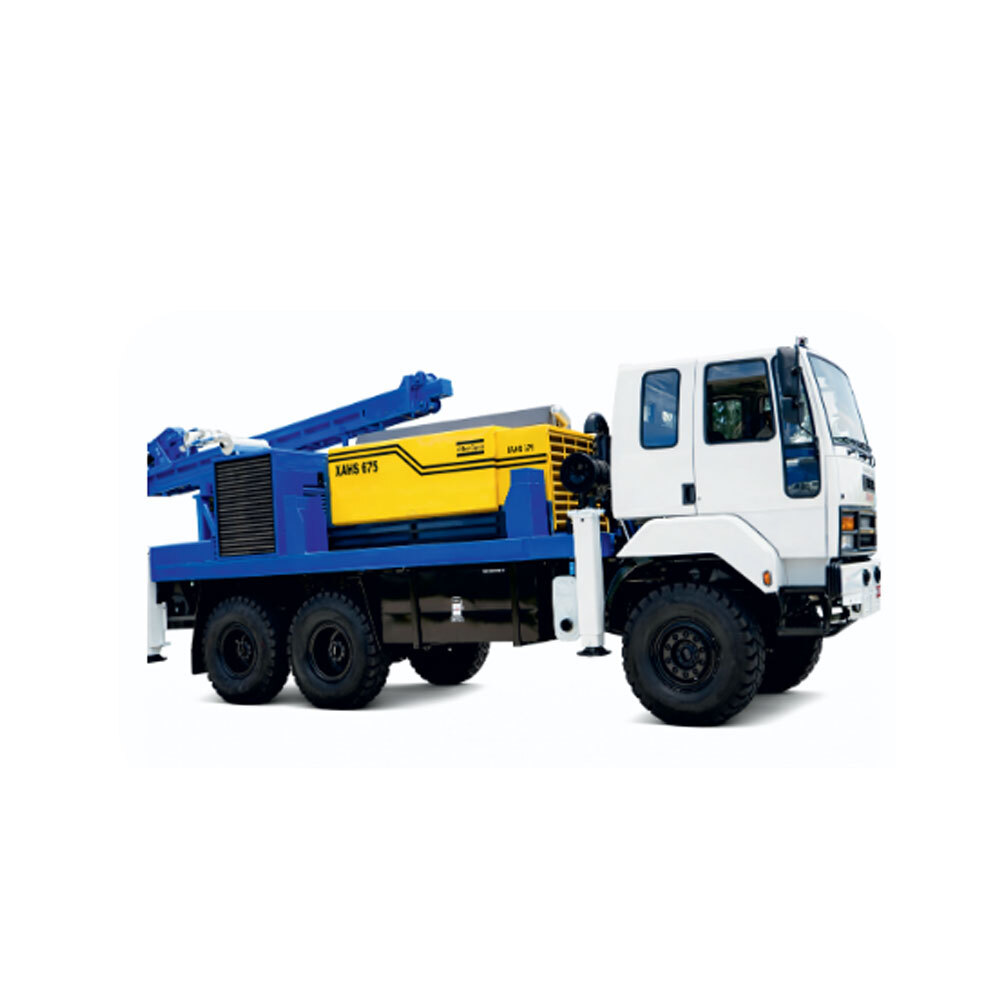

Str 100 Special Purpose Single Truck Mounted Drilling Rig

Str 100 Special Purpose Single Truck Mounted Drilling Rig Specification

Dimension (L*W*H)
8900 mm x 2500 mm x 3600 mm

Spindle Speed
Variable, max 140 rpm

Diameter
Drilling diameter up to 300 mm

Cutting Area
Suitable for large bore wells

Noise Level
Moderate (Diesel engine based)

Condition
New

Machine Type
Truck Mounted Drilling Rig

Features
Single truck mounting, easy mobility, robust structure, adaptable for various terrains

Motor Power
100 HP

Product Type
Single Truck Mounted Drilling Rig

Material
High-grade steel structure

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Hydraulic control panel

Voltage
Diesel engine powered (non-electric)

Power
Diesel engine, approx. 100 HP

Power Source
Diesel

Weight (kg)
Approx. 12,000 kg

Capacity
Drilling depth up to 400 meters

Color
Yellow

Usage & Applications
Water well drilling, mineral exploration, geotechnical investigation

Drilling Method
Rotary, DTH (Down-The-Hole) Hammer compatibility

Jack System
Hydraulic Self Leveling

Rotary Head Torque
Up to 6,500 Nm

Main Winch Capacity
4,500 kg

Mud Pump
Onboard, 6" x 8" capacity

Drill Pipe Length
3 m or 4.5 m, as per configuration

Fuel Tank Capacity
200 liters

Pull Down Force
Up to 7,500 kgf

Operating Temperature Range
-10C to 50C

Auxiliary Winch Capacity
800 kg

Mounting Chassis
Heavy-duty truck chassis, typically 6x4 or 4x4

Mobility
On-road and off-road capable

Str 100 Special Purpose Single Truck Mounted Drilling Rig Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1-2 Week

About Str 100 Special Purpose Single Truck Mounted Drilling Rig

Unlock formidable performance with the Str 100 Special Purpose Single Truck Mounted Drilling Rig, available at an unbeatable price when you buy online. This majestic rig features a heavy-duty 6x4 or 4x4 chassis, supporting up to 400 meters of drilling depth for water wells and mineral exploration. With impeccable DTH hammer compatibility, onboard mud pump, robust steel structure, and a semi-automatic hydraulic control system, this rig delivers power, adaptability, and ease of use across diverse terrains. Experience unmatched reliability with every operation-engineered in India for excellence.

Exceptional Features and Competitive Advantages

The Str 100 Drilling Rig stands out with primary advantages such as versatile rotary and DTH drilling compatibility, a powerful 100 HP diesel engine, and a hydraulic self-leveling system for seamless mobility. Key features include a heavy-duty chassis, robust design, and impressive main winch capacity-making it ideal for challenging environments. Its adaptability for large bore wells, variable spindle speed, and ease of operation ensure maximum efficiency for water well drilling, mineral exploration, and geotechnical investigations.

Packaging, Export Markets, and Swift Delivery

Each Str 100 Drilling Rig is securely packaged to ensure valuation integrity upon arrival at your site. The rig is prepared for international export, with main markets spanning Asia, the Middle East, and Africa. Timely delivery is a priority-customers can expect dispatch within a short window after order confirmation, ensuring your project remains on schedule. Every unit is handled with precision from warehouse departure to final delivery, safeguarding both quality and operational readiness.

FAQ's of Str 100 Special Purpose Single Truck Mounted Drilling Rig:

Q: How does the Str 100 Drilling Rig perform in varied terrains?

A: The Str 100 is engineered for both on-road and off-road mobility, supported by a high-grade steel chassis and hydraulic self-leveling jacks, ensuring stable and reliable drilling across diverse terrains.

Q: What are the primary uses of the Str 100 Drilling Rig?

A: This rig is designed for water well drilling, mineral exploration, and geotechnical investigation, with adaptability for different drilling diameters and depths up to 400 meters.

Q: What drilling methods are compatible with this rig?

A: The Str 100 supports both rotary and DTH (Down-The-Hole) hammer drilling methods, making it versatile for various ground conditions and project requirements.

Q: Where is the Str 100 Drilling Rig exported?

A: The rig is exported to major international markets, particularly across Asia, the Middle East, and Africa, with reliable packaging and fast logistics to secure its safe arrival.

Q: What is the main benefit of the hydraulic control panel?

A: The semi-automatic hydraulic control panel allows operators to manage drilling functions with precision, increasing efficiency and reducing manual workload during operations.
