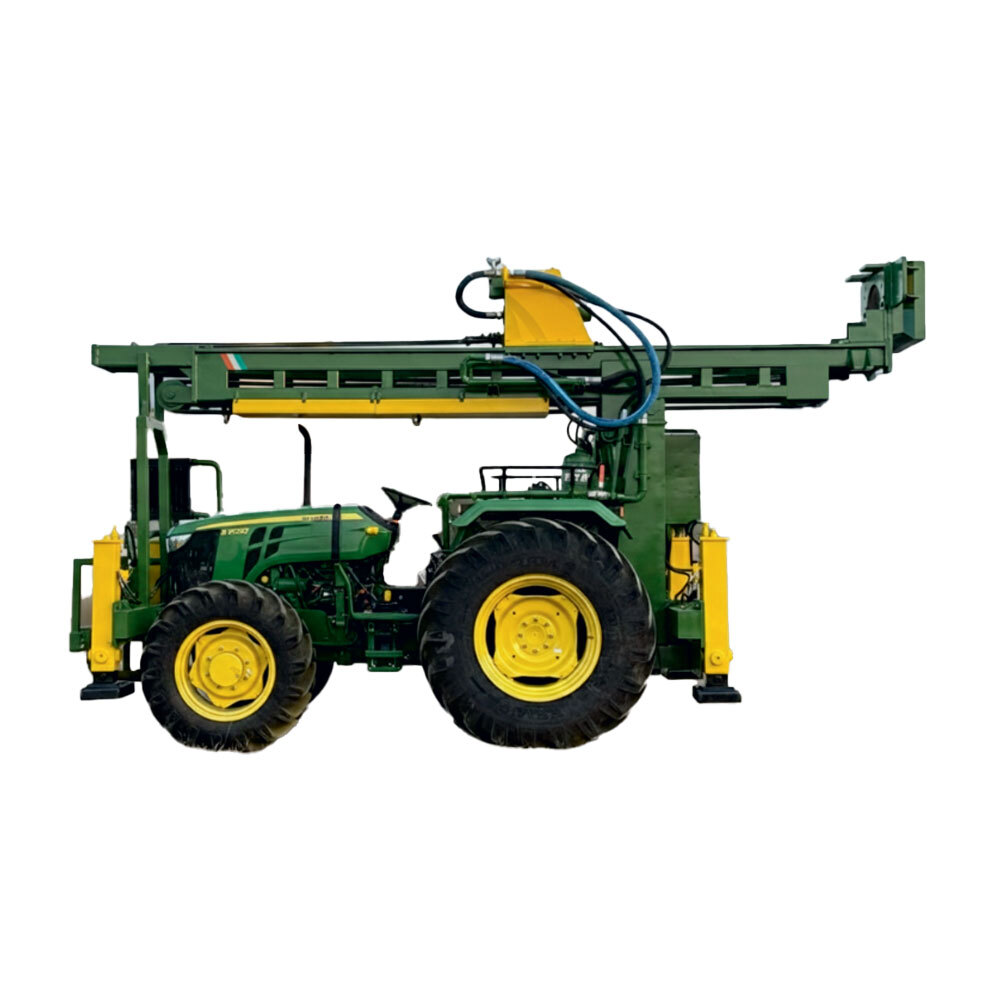

Str Dth T200 Tractor Mounted Rig (Multi Purpose Machine)

Str Dth T200 Tractor Mounted Rig (Multi Purpose Machine) Specification

Dimension (L*W*H)
Variable, Typical: 6000 x 2200 x 2400 mm

Diameter
Drilling Hole Diameter: 100-254 mm

Noise Level
Standard (As per tractor specifications)

Features
Robust Construction, Tractor Mounted, Easy Transportation, Multi Purpose

Spindle Speed
Variable, 0-100 rpm

Condition
New

Cutting Area
Variable as per Drilling Application

Motor Power
Driven by Tractor Engine

Machine Type
Multipurpose Drilling Rig

Frequency
50 Hz

Product Type
Tractor Mounted Rig (Multi Purpose Machine)

Material
Heavy Duty Alloy Steel Frame, MS, Cast Iron

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual/Lever Operated

Voltage
12V/24V (Tractor Power)

Power
Dependent on Tractor Engine (Typically 60-100 HP)

Power Source
Diesel (Tractor) Powered

Weight (kg)
Approx 4000-5000 kg (Dependent on Model)

Capacity
Drilling Depth Up to 200 m

Color
Yellow & Black

Usage & Applications
Water Well Drilling, Mining, Geo Technical, Exploration, Soil Investigation

Compressor Requirement
Optional, 300-450 cfm @ 100-175 psi for DTH

Water Injection System
Provided

Operating Temperature
-10C to +55C

Mast Height
6-7 m

Drill Pipe Length
3 m (Standard)

Hydraulic System
Heavy Duty, Multi-Function Controls

Mobility
Tractor Mounted for Off-Road and On-Road Movement

Pull Up Force
7000-10000 kgf

Drilling Method
DTH (Down The Hole), Rotary, Mud Drilling

Rotation Torque
3400 Nm (Approx)

Pull Down Force
4000-6000 kgf

Str Dth T200 Tractor Mounted Rig (Multi Purpose Machine) Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
1-2 Week

About Str Dth T200 Tractor Mounted Rig (Multi Purpose Machine)

Introducing the New Str Dth T200 Tractor Mounted Rig - now available at a Reduced Price! This ravishing, superlative multi-purpose machine is engineered for robust performance in water well drilling, mining, geo technical exploration, and soil investigation. Featuring a ravishing heavy-duty alloy steel frame, variable 0-100 rpm spindle speed, and a gorgeous yellow & black design, this machine is perfect for off-road and on-road use. Equipped with a waving mast height of 6-7m and drill pipe length of 3m, it supports drilling depths up to 200m! Pick Yours today and experience exceptional efficiency and reliability!

Versatile Use & Application Surfaces

The Str Dth T200 Tractor Mounted Rig is designed for easy operation across diverse terrains. Its multi-purpose capabilities cater to directionally controlled drilling for well-water extraction, mining exploration, and geo-technical surveys. Suitable for various surface types-including soil, rocky substrate, and mud-the rig guarantees superlative performance thanks to its heavy-duty system and robust construction. Operators can confidently deploy this rig in domestic or rugged field environments for both off-road and on-road projects.

Supply, Payment, and Sample Availability

We offer prompt Packing & Dispatch to the domestic market, providing customers with secure delivery and flexible payment terms, including traditional and exchange options. Sample units of the Str Dth T200 Tractor Mounted Rig are available upon request, ensuring customer satisfaction before purchase. With a strong supply ability, we efficiently handle bulk orders. Whether you require single or multiple units, we ensure timely fulfillment and reliable customer support throughout the buying experience.

FAQ's of Str Dth T200 Tractor Mounted Rig (Multi Purpose Machine):

Q: How does the Str Dth T200 Tractor Mounted Rig operate?

A: The rig is tractor-mounted and powered by a diesel engine, using manual/lever controls. It supports variable spindle speed and is suitable for DTH, rotary, and mud drilling methods.

Q: What surfaces and materials can this rig drill through?

A: The Str Dth T200 is designed to drill through soil, rock, and mud, making it ideal for water wells, mining exploration, and geo-technical investigations.

Q: When is a compressor required for operation?

A: For DTH drilling, a compressor (300-450 cfm @ 100-175 psi) is optionally required to aid in drilling performance depending on specific site requirements.

Q: Where can the Str Dth T200 be utilized?

A: It is suitable for both off-road and on-road locations, thanks to its tractor-mounted mobility, enabling work in rural fields, construction sites, and remote mining zones.

Q: What are the key benefits of choosing this multi-purpose rig?

A: Users gain the advantage of multi-functional drilling, robust construction, easy transportability, and operational reliability, all at a reduced price for superior investment value.
