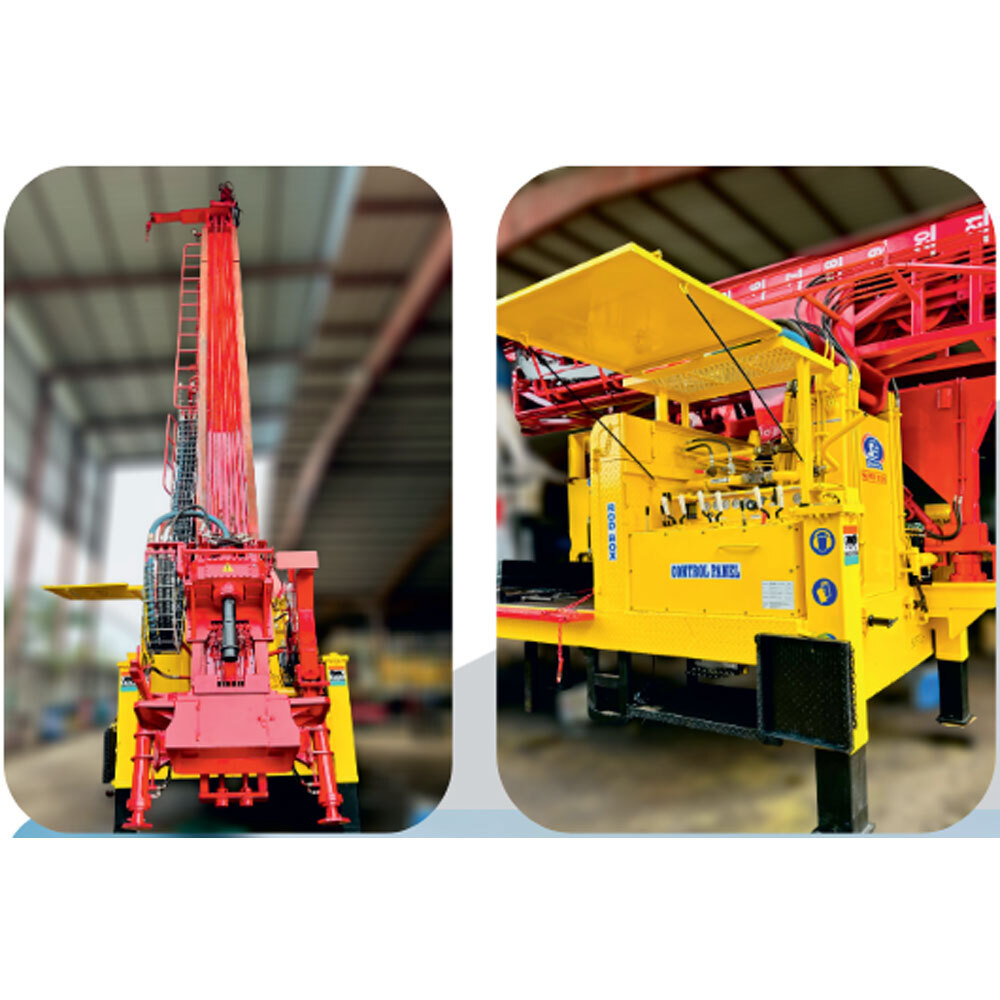

Str Dth 1200 Skid Mounted Rig With Hydraulic Rod Changer

Str Dth 1200 Skid Mounted Rig With Hydraulic Rod Changer Specification

Condition
New

Diameter
Drilling diameter 4.5 to 8 inches

Machine Type
DTH Water Well Drilling Rig

Features
Hydraulic Rod Changer, Heavy Duty Construction, Skid Mounted, Easy Mobility

Frequency
50 Hz

Motor Power
120 HP Diesel Engine

Dimension (L*W*H)
6900 mm x 2500 mm x 3200 mm

Spindle Speed
80 - 110 rpm (Variable)

Noise Level
Less than 90 dB(A)

Product Type
Skid Mounted DTH Drilling Rig

Material
High Strength Alloy Steel & Industrial Grade Components

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Hydraulic and Mechanical Controls

Voltage
415 V AC, 50 Hz

Power
120 HP

Power Source
Diesel Engine or Electric Motor

Weight (kg)
Approx. 7500 kg

Capacity
Drilling depth up to 1200 feet (Depending on formation and rod type)

Color
Industrial Yellow/Blue (Customizable)

Usage & Applications
Water Well Drilling, Borehole Drilling, Mining Exploration

Max. Pull Up Force
8500 kg

Rod Handling System
Fully Hydraulic Rod Changer (single-loader, 6 meter rods)

Drilling Method
DTH (Down The Hole) Percussion & Rotary

Fuel Tank Capacity
150 liters

Max. Pull Down Force
7000 to 8000 kg

Air Compressor Requirement
300-450 PSI, 900-1100 CFM

Working Temperature Range
-20C to +55C

Main Winch Lifting Capacity
3000 kg

Hydraulic System Pressure
2500 psi

Mast Height
Approx. 8 m

Mobility
Skid Mounted for Easy Positioning

Lubrication System
Centralized Automatic Greasing

Feed Stroke
3600 mm

Crawler/Skid Base
Skid Base (Optional Crawler as customization)

Safety Features
Auto Shutdown Safety, Emergency Stop Button, Overload Protection

Str Dth 1200 Skid Mounted Rig With Hydraulic Rod Changer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1 Unit Per Month

Delivery Time
2-4 Week

About Str Dth 1200 Skid Mounted Rig With Hydraulic Rod Changer

The Str Dth 1200 Skid Mounted Rig With Hydraulic Rod Changer stands as a crowning achievement in drilling technology, earning favorable reviews for its first-rate performance across dominant industries. With a max pull down force of 7000-8000 kg and advanced DTH percussion and rotary drilling methods, this machine delivers reliable, deep borehole solutions. Advance Purchase and reserve opportunities are available for businesses seeking a robust, industrial-grade rig with superior features-such as a fully hydraulic rod changer, central automatic greasing, and prominent safety elements. Ideal for water well drilling, mining, and exploration, it blends convenience, strength and versatility.

Key Features and Commercial Applications

The Str Dth 1200 is equipped with a powerful hydraulic rod changer, central auto-greasing system, and operates at variable spindle speed. Its high-strength alloy steel frame endures demanding water well drilling, mining exploration, and commercial borehole drilling. This versatile rig handles drilling diameters from 4.5 to 8 inches and depths up to 1200 feet, excelling across challenging application media like rock and soil. Heavy-duty construction ensures reliability in harsh working environments.

Export Market Presence and Domestic Reach

The Str Dth 1200 Skid Mounted Rig caters to a dominant export market in Asia, Africa, and Middle Eastern regions, with robust transport services ensuring timely global deliveries. Widely favored in India's dynamic domestic market, it meets the needs of water resource management and mining companies nationwide. Samples are available upon request, supporting both commercial procurement and large-scale deployment. Its renowned quality makes it a first-rate choice in both global and local sectors.

FAQ's of Str Dth 1200 Skid Mounted Rig With Hydraulic Rod Changer:

Q: How does the hydraulic rod changer improve drilling efficiency on the Str Dth 1200 rig?

A: The fully hydraulic rod changer streamlines rod handling, significantly reducing manual labor and operational downtime. This semi-automatic feature allows for quick, safe rod changes, supporting higher productivity and consistent drilling performance.

Q: What commercial industries benefit most from using the Str Dth 1200 Skid Mounted Rig?

A: Industries such as water well drilling, mining exploration, and borehole development benefit greatly from this rig's first-rate performance, thanks to its dominant pull force, deep drilling capability, and adaptable features for various geological conditions.

Q: Where can the Str Dth 1200 be transported and set up for operation?

A: Designed for mobility, the skid-mounted base enables easy positioning at remote or rugged sites. Optional crawler customization further improves access in challenging terrains, making it suitable for both fieldwork and stationary drilling jobs globally.

Q: What safety features are incorporated in the Str Dth 1200 Skid Mounted Rig?

A: This rig integrates auto shutdown, emergency stop, overload protection, and centralized automatic greasing, prioritizing operator safety and machine durability during high-intensity operations.

Q: When is advance purchase or reservation recommended for this drilling rig?

A: Advance purchase or reservation is advised for large projects, bulk procurement, or to ensure timely delivery to export markets, especially when high demand periods may extend lead times.

Q: How is the Str Dth 1200 Skid Mounted Rig powered and controlled?

A: It operates via a 120 HP diesel engine or electric motor and features robust hydraulic and mechanical controls-not computerized-providing reliability even in remote, off-grid settings.
